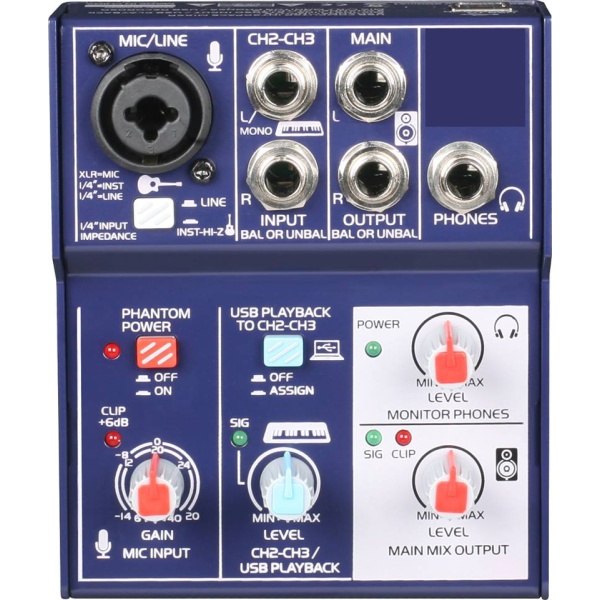

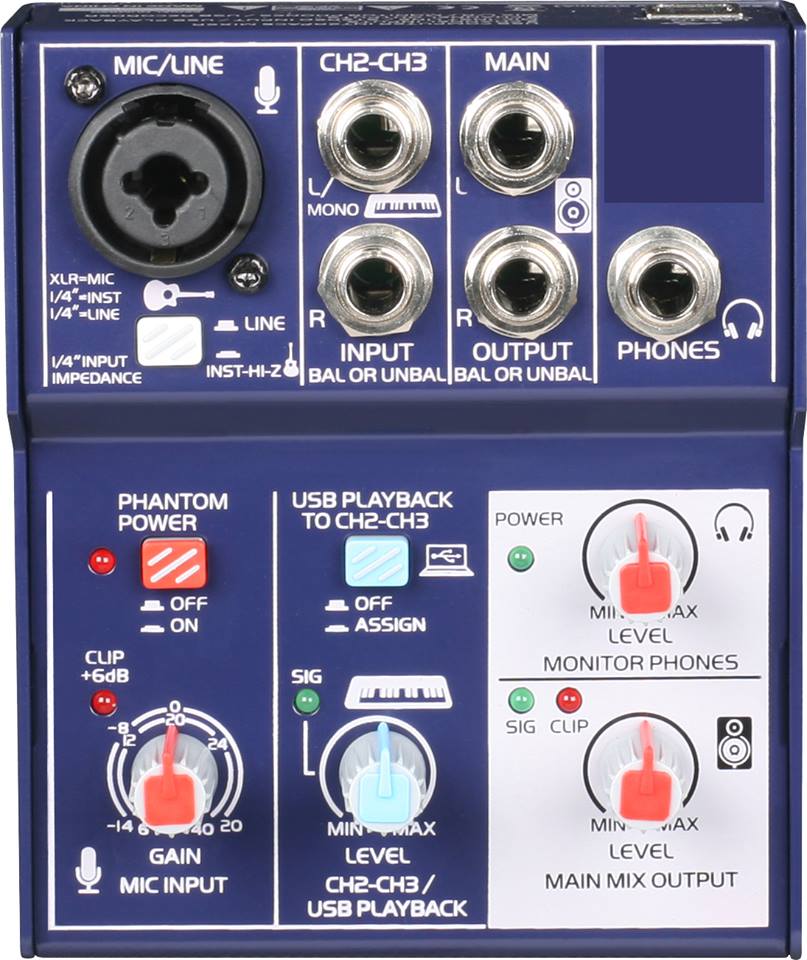

Mikser Ses Kartı Um-33

Input Channels      Mono (MIC/LINE)/INST: 1 ;

                         Stereo (LINE): 1;

                         USB PLAYBACK: 1;

Output Channels    MAIN L/R OUT: 1;

                          PHONES: 1 ;

Bus                     Stereo: 1

Input Channel Function

    CH1 MIC/INST(LINE)   GAIN, -14~+40 dB;

                           +48V, Phantom Power,LED;

                           PEAK LED LED turns on when the signal reaches 3 dB below clipping level.

                           IMPEDANCE Switch;

    CH2-CH3 LINE         SIGNAL LED, -3dB;

                           LEVEL Knob;

    USB Audio             Stereo Input / Stereo Output;

                           USB Audio Class 2.0 compliant;

                           Sampling Frequency: Max 48 kHz, Bit Depth: 16-bit;

                           Type B connector;

                           Playback LEVEL Knob;

Level Meter            2 point LED meter (CLIP, SIG);

Power Requirements   DC 5 V, 500 mA

Power Consumption    Max. 2.5 W

Dimensions (WxHxD)   98 mm x 40 mm x 120 mm (3.9" x1.6" x 4.7" )

Net Weight                  0.4 kg (0.9 lbs)
